首頁>產品中心>High Tempertature Slip Rings

High Temperature slip ring

產品類型：High Tempertature Slip Rings 產品型號：PSR-HTA-12-6
PSR-HTA High Temperature slip ring can be used in high temperature to transmit  precision signal,high-current,weak current,high voltage;And it provides low torque,low-loss and maintenance-free,low electrical noise...
  • 性能

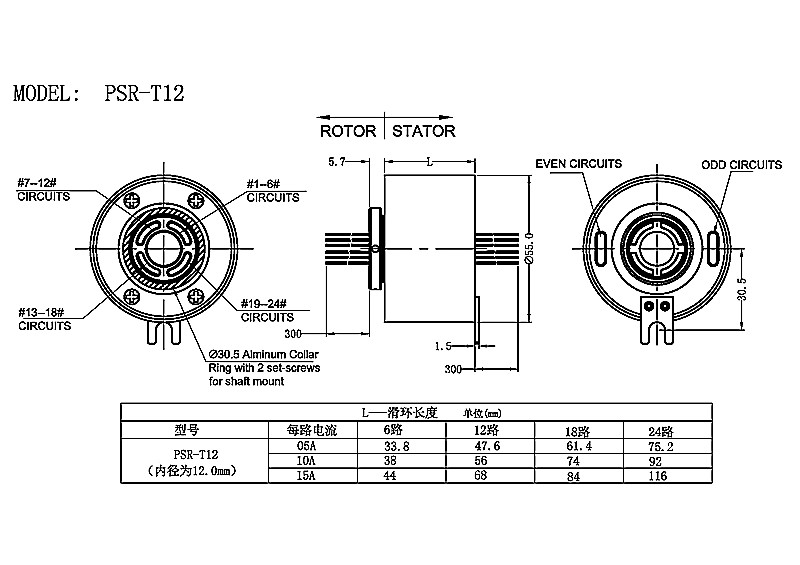

  • 尺寸圖
  • 特征
  • 安裝方法

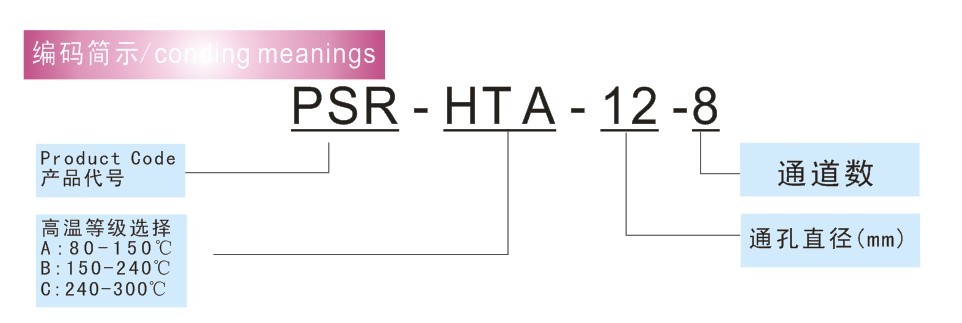

  • 訂貨號
  • 下載

Electrical Spec.

Options

Rating voltage

380VAC

 Flange for set up

Rating current

5A /Ring，10A /Ring，15A /Ring

The wire exit direction,length is optional

Insulation resistance

1000MΩ@500VDC

Can combine more circuits:1-126Ring

Dielectric strength

600VDC@50Hz

Higher voltage and current capacity

Electrical noise

10mΩ@6VDC,50mA, 5Rpm

Higher rotational seed:1000Rpm、2500Rpm、5000Rpm

  Mechanical Spec

 Environment

Speed

300Rpm

Working temperature

80℃~+400℃

Torque

40N.cm

Mechanical vibration

MIL-SID-810E

Seal class

IP54 (IP68 Options)

Humidity

10% to 90% RH non-condensing

Contact material

Precious Metal

Materials

Lead Free,RoHS compliant

Lead Wire

12color 1.0mm2Teflon wire

CE Certified

YES

Life

30million revolutions

　

¤ Feature

?Moudle design;Meet the most of requirement

?More install methood for option

?Can combine more circuits:1-126Ring

?Working stable with high temperature

?Fiber brush technology provides maitennance free operation (no cleaning or lubrication required)

¤ Typical application

?Robotics

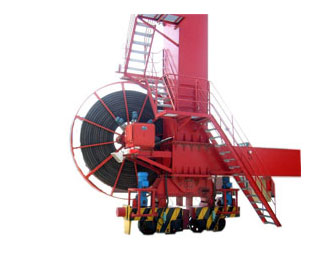

?Cable Reels

?Testing equipment

?Rotating platform

?Industrial machinery



Installation Guide:


1.Main shaft mouted units:
A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring)

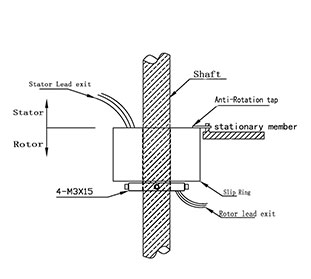

2.Housing mouted units:
A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.
