¤ Feature

    ? Fiber brush technology provides maintenance free opration-no cleaning or lubrication required


    ? Moudel design ;Meet the most of requirement


     ?More install method for opdation


     ?Can combine signal and power in same slio ring


    ? Can combine more circuits :1-100Ring

1.   Silicon furnace

2.   CCTV Monitoring System

3.   Eletrical test equipment

4.   Medical equipment

5.   Robotics

 Installation Guide:

1.Main shaft mouted units:
A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring)

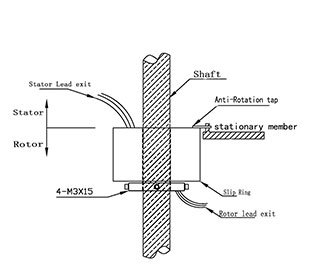

2.Housing mouted units:
A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.

CAUTION:

Because of possible geometric mismatching between the customer's application and the slip ring,'hard mouting'of both ends of the slip ring(i.e.securing the rotor and stator such that there is no floating during operation) is not recommended and may cause premature failure.
