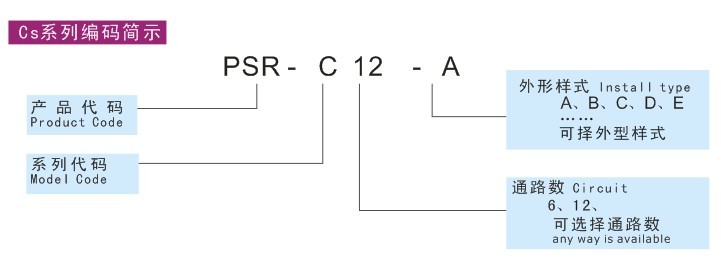

Electrical Spec. |
Options | ||
|
Circuit |
12 |
Support for higher speed:500Rpm |
|
|
Rating voltage |
240VAC |
More install method for option |
|
|
Rating current |
2A/Ring,5A,10A by parrelled |
Lead length can be appointed |
|
|
Insulation resistance |
1000MΩ@500VDC |
Cable Exit is optional |
|
|
Dielectric strength |
600VDC@50Hz |
Available connecter and Heat-shrink tube |
|
|
Electrical noise |
10mΩ@6VDC,50mA, 5Rpm |
|
|
|
Mechanical Spec |
Environment |
||
|
Speed |
300Rpm |
Working temperature |
-40℃~+80℃ |
|
Torque |
0.01N.M |
Mechanical vibration |
MIL-SID-810E |
|
Seal class |
IP54 |
Humidity |
10% to 90% RH non-condensing |
|
Contact material |
Precious Metal：Gold-Gold |
Materials |
Lead Free,RoHS compliant |
|
Lead Wire |
12 color AWG#28 Teflon wire |
CE Certified |
YES |
|
Life |
30million revolutions |
|
|

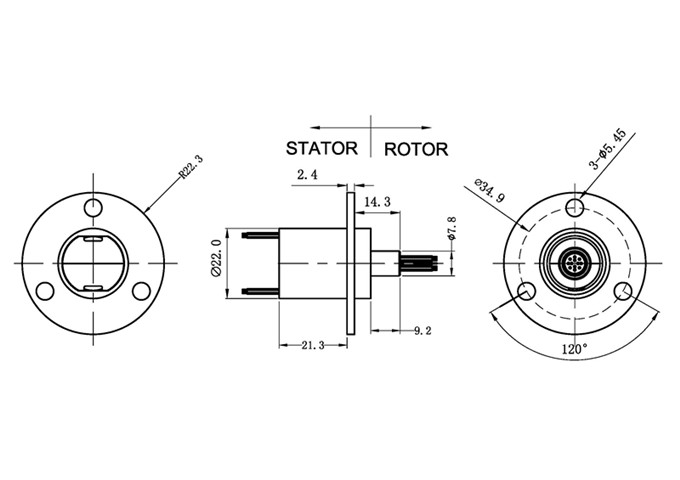

Installtion Guide

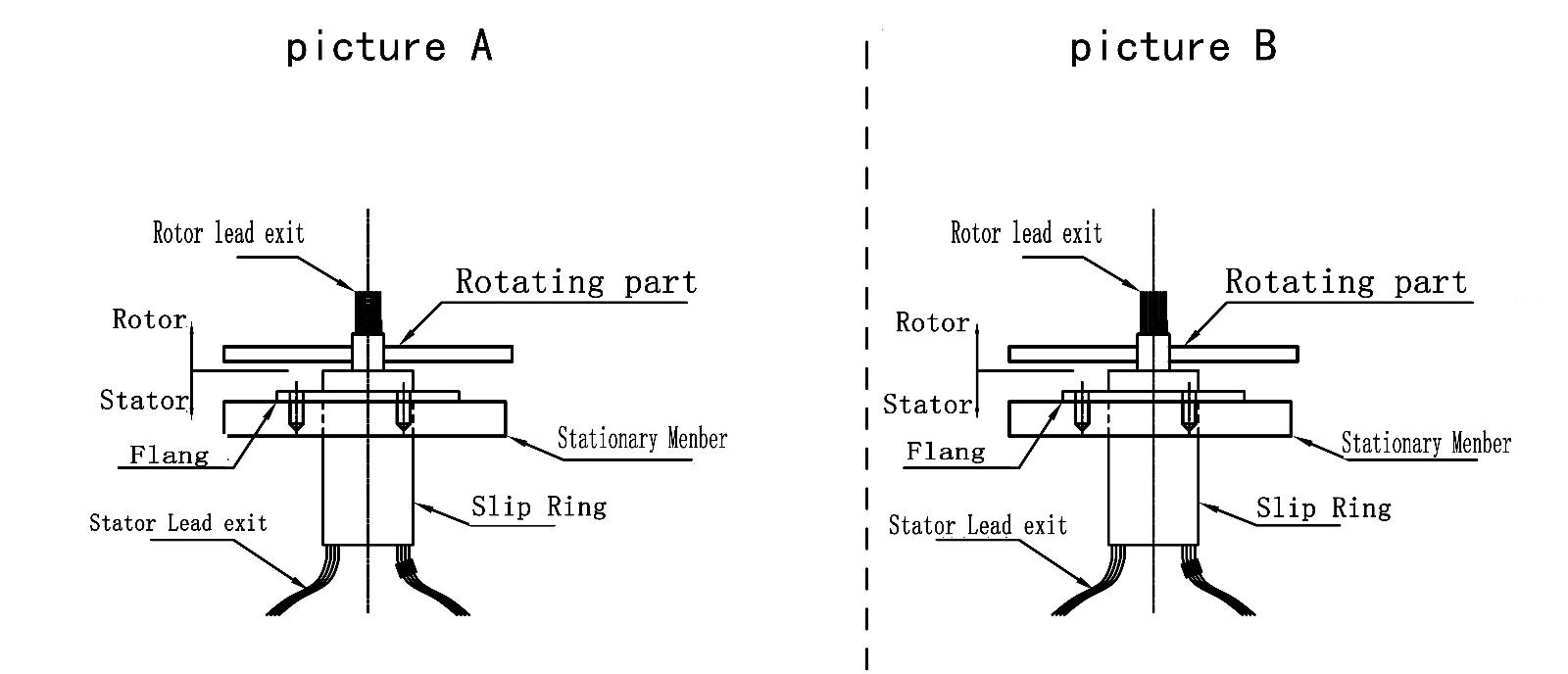

Picture A
1. Position the slip ring in the desired location and tighten both set screws to the shaft . Maximum torque 25Ib-in(DO NOT OVER TOQUE)
2. Route the wiring and make neccessary connections . Do not allow the wiring to restrict free rotation of the slip ring .Do not constrain wiring such that wire flexing occurs . Doing so will ultimately cause failure(breakage of the wiring)
Picture B
1. Align the mouting holes(M3x8) in the flange to mouting base and install mouting screws(M3), securely tighten screws.
2. Route the wiring and make the neccessary connections . Donot allow the wiring to restrict free rotations of the slip ring .
CAUTION:
Because of possible geometric mismatching between the customer's application and the slip ring , 'hard mouting' of both ends of the slip ring（i.e,.securing the rotor and stator such that there is no floating during operation) is not recommended and may cause premature failure.
 |
